46297 Amana Tool Solid Carbide UltraTrim Spiral Trim Down-Cut

The Amana Tool 46297 Solid Carbide UltraTrim Spiral Trim Bit is a great choice when you need clean, controlled flush trimming and profile cutting on template-based projects. With its 1/4" diameter, 1" cutting height, and down-cut spiral design, this bit is especially useful when you want a clean top edge and smooth results on detailed woodworking parts.

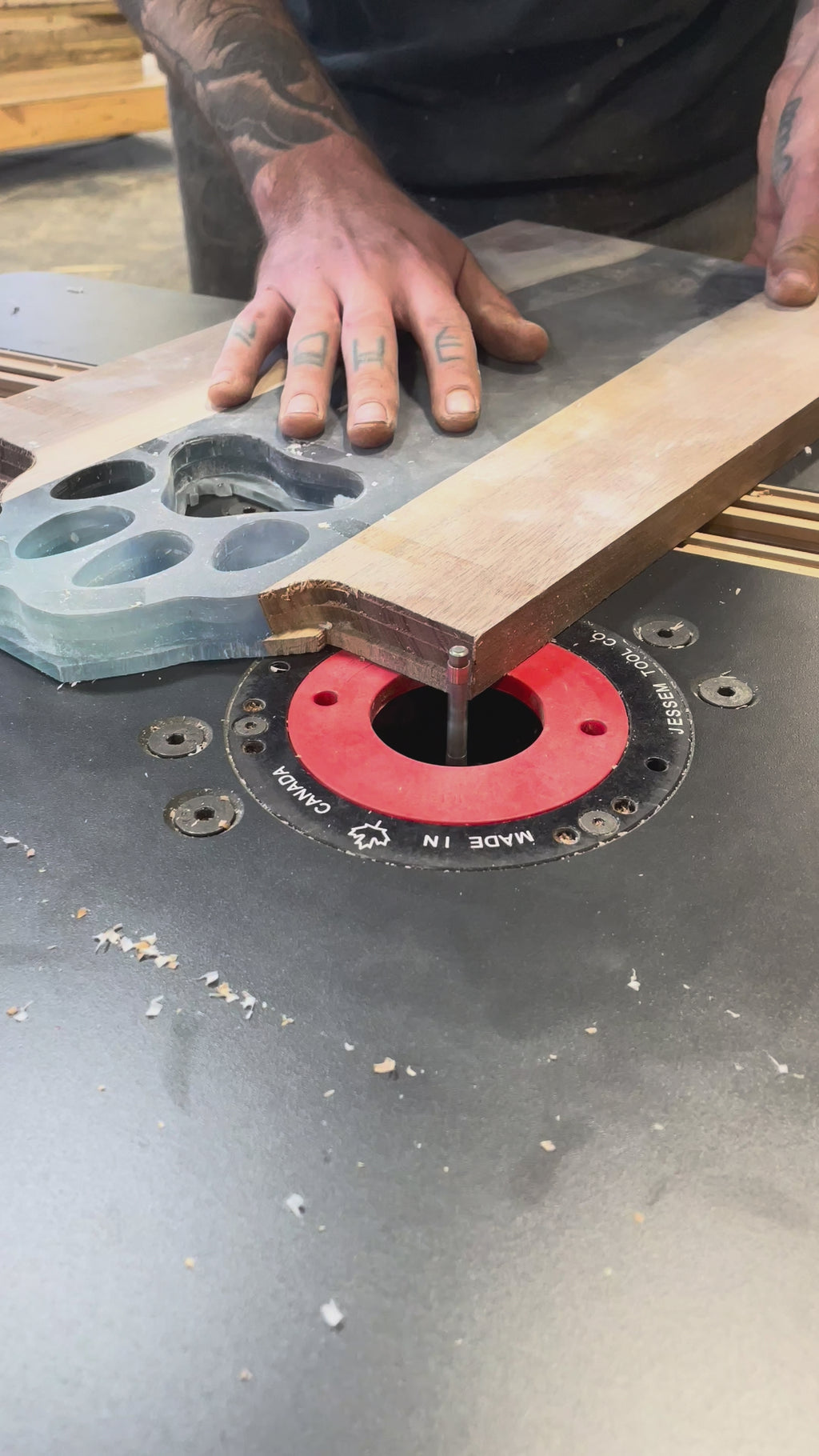

We use this router bit for flush trimming our Full Board Templates, Handle Templates, Wine Caddy Templates, and Layout Templates. We also use it for cutting the outside profile of our Tray and Dish Templates. It’s a really handy bit for shops doing repeated template work where clean, accurate results matter.

Because this is a solid carbide spiral trim bit, it performs best when used with a lighter approach. We recommend taking off only 1/16" to 1/8" of material at a time and avoiding too much pressure, since aggressive cuts can cause the bit to snap.

Why We Like It

• Great for flush trimming template-based projects

• Ideal for full board templates, handles, wine caddies, trays, dishes, and layout templates

• Down-cut spiral design helps leave a cleaner top edge

• Excellent for outside profile cutting and detailed template work

• Solid carbide construction for precision and durability

• A great bit for repeatable, clean routing in production-style woodworking

Specifications

• Model: Amana Tool 46297

• Type: Down-Cut

• Direction: Down-Cut

• Diameter (D): 1/4"

• Cutting Height (B): 1"

• Shank (d): 1/4"

• Overall Length (L): 3"

What’s Included

• One (1) Amana Tool 46297 Solid Carbide UltraTrim Spiral Trim 1/4 Down-Cut

What We Use It For

We use this router bit for:

• Flush trimming Full Board Templates

• Flush trimming Handle Templates

• Flush trimming Wine Caddy Templates

• Flush trimming Layout Templates

• Cutting the outside profile of Tray and Dish Templates

This is a great bit when you need a clean, controlled cut on template-driven projects and want a reliable option for repeated shaping work.

Important Use Notes

Please note: there is no warranty on this bit.

To help reduce the chance of breakage:

• Only remove 1/16" to 1/8" of material at a time

• Do not apply too much pressure

• Run the router at the slowest speed to start, then increase only as needed

• Use a steady, controlled cutting approach

Because this is a solid carbide bit, it can deliver very clean results, but it should not be forced through the cut.

Frequently Asked Questions

What is this router bit used for?
This bit is used for flush trimming templates and cutting outside profiles on woodworking projects. In our shop, we use it for full board templates, handle templates, wine caddy templates, layout templates, and tray or dish profiles.

What is the advantage of a down-cut spiral bit?
A down-cut spiral bit pushes fibers downward as it cuts, which can help leave a cleaner top edge on the workpiece. This makes it a good option when top-surface cut quality matters.

What projects is this bit best for?
This bit is ideal for template routing, flush trimming, outside profile cutting, trays, dishes, handles, boards, and other detailed woodworking projects.

Can I use this bit in a standard router?
Yes — this bit has a 1/4" shank, so it fits routers that accept 1/4" shank router bits.

Why should I only remove 1/16" to 1/8" at a time?
This bit is designed for more controlled trimming passes. Taking lighter passes helps reduce stress on the bit and lowers the chance of snapping it.

Why is there no warranty on this bit?
Because this bit can break if too much pressure is applied or if too much material is removed at once, it is sold without warranty. A lighter, more controlled approach is recommended.

What router speed should I use?
We normally run it at the slowest speed to start and increase the speed only if needed. Starting slower helps you stay in control and reduces stress on the bit.
